Aluminium TIG Gas Storage Tanks Nplhaib Seam Vuam Tshuab

Cov cuab yeej siv no yog qhov ua tau zoo tsis siv neeg vuam tshuab ua ke nrog kev tswj xyuas tshuab thiab hluav taws xob nrog vuam tshuab. Tshwj xeeb tsim los rau cov welds ncig ntawm aluminium alloy roj tso tsheb hlau luam (lub tog raj kheej), nws ua haujlwm siab TIG (Tungsten Inert Gas) vuam tshuab. Los ntawm kev sib sib zog nqus sib txuas ntawm qhov kev sib hloov ntawm qhov tseeb thiab cov vuam siv hluav taws xob digital, nws daws cov teeb meem ntawm oxidation, porosity, thiab weld collapse uas nquag tshwm sim hauv aluminium alloy vuam, kom ntseeg tau tias txhua qhov vuam muaj aerospace- qib nruj thiab zoo nkauj.

Aluminium alloy circumferential weld:

1. Reinforced Frame Base
Ua los ntawm loj-size square steel, welded thiab annealed kom tshem tawm cov kev ntxhov siab sab hauv thiab xyuas kom tsis muaj deformation thaum lub sijhawm ua haujlwm ntev -.

2. Precision Servo Rotary Spindle
Nruab nrog lub siab -precision AC servo lub cev muaj zog thiab reducer tsav, ua kom ruaj khov ceev thiab txo qis qis - nrawm nkag.

Nruab nrog lub siab ua haujlwm slip nplhaib mechanism los tiv thaiv lub cev muaj zog los ntawm siab - zaus cuam tshuam thiab xyuas kom ruaj khov vuam tam sim no.

3. Pneumatic Peb-Lub puab tsaig / Customized Pwm Chuck Thiab Cov Ncej Suppoting
Customized tooling raws li txoj kab uas hla ntawm aluminium gas tank, siv cov cuab yeej hloov tau yooj yim clamping kom ruaj khov thaum tiv thaiv khawb lossis deformation ntawm aluminium nto.Lub tog raj kheej ua kom qhov chaw nrawm thiab thauj khoom / tshem tawm ntawm cov khoom txhawb nqa. Nws cov hlab ntsha tuaj yeem hloov kho raws li qhov loj me ntawm lub workpiece, thiab nws yog qhov tsim nyog rau ntau yam kev qhia tshwj xeeb thiab cov qauv ntawm lub tog raj kheej txhawb nqa, txhawb kev ua haujlwm.

4. Pneumatic Tailstock Clamping
Lub tailstock stroke yog adjustable kom haum rau tanks ntawm txawv lengths.

Siv lub tog raj kheej- tsav clamping nrog cov kab ntawv qhia sliders, nws ua kom muaj kev rov ua tau zoo dua thiab qhov tseeb qhov tseeb thaum lub sijhawm ua haujlwm clamping.

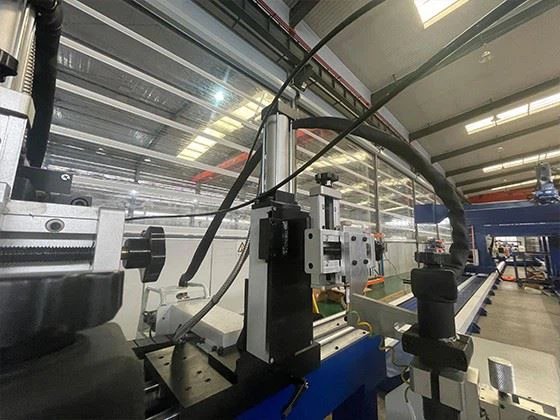

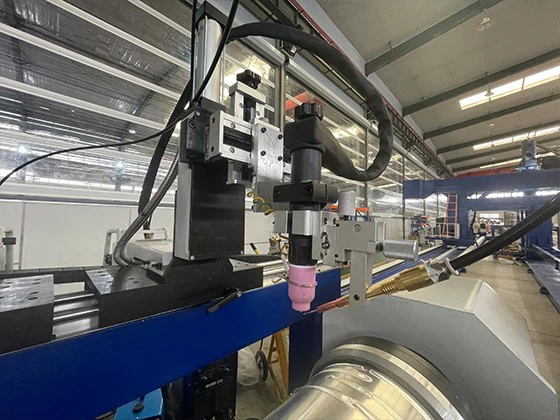

5. Multi-Siv qhov ntev Vuam Torch Kho Mechanism

Peb -dimensional manual/electric adjustment slides: Enables precise positioning of the welding torch along the X, Y, and Z axes and at tilt angles.

Pneumatic lifting swb: Ua kom nrawm nkag thiab tawm ntawm vuam teeb, txhim kho kev thauj khoom thiab tshem tawm kev ua haujlwm.

Tsis Siv Neeg Vuam Tshuab rau Cua Tank:

• Cov kev tswj hwm digital tag nrho: PLC tswj lub hauv paus, txhawb nqa ib qho - khawm pib. Vuam tam sim no, ceev, sib tshooj, thiab arc ignition / txiav lub sij hawm tag nrho yuav tsum tau digitally teem rau ntawm lub touchscreen.
• Ntau- ntu vuam presets: Tso cai teeb tsa qhov sib txawv ntawm qhov sib txawv ntawm qhov sib txawv ntawm qhov sib txawv ntawm lub tank (piv txwv li, kev sib txuas ntawm lub hau kawg thiab lub tog raj kheej).
• Tsis siv neeg arc termination muaj nuj nqi: Targeting lub siab thermal conductivity ntawm txhuas, lub system nta tsis siv neeg tam sim no attenuation them, zoo tiv thaiv crater tawg ntawm lub arc termination point.
• Circulating water cooling system: Lub siab - dej fais fab - txias vuam teeb, ua ke nrog lub tshuab chiller, txhawb nqa 24-teev kev ua haujlwm siab ua haujlwm siab, tiv thaiv lub teeb taws los ntawm kev kub hnyiab.

Aluminium welding TIG tsis siv neeg cov cuab yeej:

• Thaum tshav kub kub Input Control: Pulsed TIG technology precisely tswj lub molten pas dej ua ke kub, tiv thaiv overheating, deformation, los yog perforation ntawm txhuas.
• Zoo nkauj Weld Tsim: Uniform ntses- qauv qauv thiab qhov dav dav ntawm cov vuam seam tshem tawm qhov xav tau rau kev sib tsoo, txo cov nqi zog.
• Kev Ua Haujlwm Yooj Yim: Modular kev khiav hauj lwm interface, tshem tawm kev cia siab rau cov neeg txawj ntse heev.
• Electromagnetic Compatibility Protection: Tag nrho cov kev tswj hwm siv ntau- qib shielding los hais txog qhov siab - zaus arcing yam ntxwv ntawm TIG vuam.

Aluminium TIG roj lub tog raj kheej nplhaib seam vuam tshuab

1.Nquag peb yuav siv fumigation plywood rooj rau ntim; rau qee lub tshuab loj, peb tuaj yeem siv steel pallet thiab yas filme npog.Tag nrho cov cav tov yog pleev xim rau cov xim pleev xim los yog roj ua ntej tawm hauv Hoobkas.
2.Package tuaj yeem ua raws li cov neeg siv khoom xav tau.
