Tsis Siv Neeg Ob Chav -teeb Submerged Arc Vuam Tshuab
Cov hluav taws xob arc kub hnyiab hauv qab txheej flux, yaj cov vuam hlau, cov khoom siv hauv paus (workpiece), thiab flux. Lub melted flux tsim slag uas tiv thaiv lub pas dej molten thiab koom nrog cov tshuaj tiv thaiv metallurgical. Vim hais tias lub pas dej arc thiab molten yog npog los ntawm flux, tsis pom lub teeb pom kev, thiab cov pa luam yeeb thiab plua plav tsawg dua.
Hauj lwm lawm
Tsis siv neeg ob - taws teeb submerged arc vuam tshuab
I. Daim ntawv thov
- Weld ib ncig seam ntawm lub tog raj kheej roj. Melting thickness thiab dav ncav cuag kev ua haujlwm. Nrog uniform thiab du welding tsos.
- Load thiab unload lub tog raj kheej yooj yim.
- Submerged Arc Vuam hom.
- Lub tshuab tuaj yeem ua haujlwm tsis tu ncua rau 24-teev.
II.Technical parameter
|
Lub tog raj kheej txoj kab uas hla |
200-750 hli |
|
Lub tog raj kheej ntev |
200-500 hli |
|
Kev sib hloov ceev |
0.2-2 rpm |
|
Lub cev muaj zog |
0.75 kwm |
|
Cua siab |
0.4-0.6 Mpa |
|
Vuam teeb txav mus rau sab laug- txoj cai |
50 hli |
|
Weld torch lifting range |
50 hli |
|
Txoj kab uas hla ntawm cov khoom hlau |
1.6mm-3.2 hli |
III. Tshuab qauv
1.Lub workpiece yog tsau los ntawm lub teb chuck, thiab txhawb los ntawm bracket ntawm dov lub log. Rolling log kom ntseeg tau tias nws hloov tau yooj yim thiab yooj yim rau kev thauj khoom thiab tshem tawm lub tog raj kheej. Qhov deb ntawm cov brackets tuaj yeem hloov kho raws li qhov ntev ntawm lub workpiece.
2.This dual- phom submerged arc vuam tshuab yog nruab nrog lub siab -precision spindle tsav system thiab txav tau yooj yim clamping mechanism. Lub thawv spindle integrates lub servo lub cev muaj zog, uas tuaj yeem tsav lub chuck kom tig lub workpiece smoothly. Nyob rau tib lub sij hawm, ib tug ejector tus pin yog ntsia rau ntawm lub tailstock mus txawv tebchaws nyob rau sab nraud. Nws tuaj yeem txav tau yooj yim thiab ua haujlwm ua ke nrog lub chuck kom khov kho lub workpiece los ntawm ob sab, yog li xyuas kom meej tias cov vuam yog ib txwm khaws cia nyob rau hauv txoj hauj lwm kab rov tav zoo tagnrho thaum lub sij hawm vuam txheej txheem, muab kev ruaj ntseg lav rau siab - zoo thiab siab - ua tau zoo circumferential vuam.

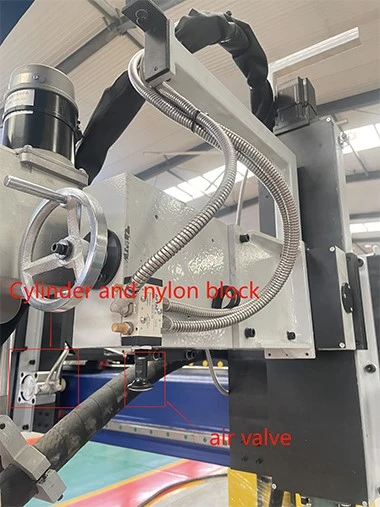

3.Qhov no valve tswj kev txav mus rau pem hauv ntej thiab rov qab ntawm lub tog raj kheej. Thaum lub valve tau tsa, lub tog raj kheej txav rov qab, tso cai rau lub vuam teeb txav mus rau sab laug thiab sab xis ntawm tus ntoo khaub lig. Thaum lub teeb mus txog qhov chaw vuam, lub valve raug nias, ua rau lub tog raj kheej txav mus. Lub tog raj kheej ces txav lub nres nres rau pem hauv ntej, kho nws mus rau crossbeam, yog li kho lub vuam teeb nyob rau hauv ib qho chaw ruaj khov rau vuam.
4.Lub hopper:Nws lub luag haujlwm tseem ceeb yog khaws cia thiab tsis tu ncua xa cov flux mus rau qhov chaw vuam. Qhov no flux npog lub arc thiab weld pas dej ua ke thaum lub sij hawm vuam, zoo tiv thaiv huab cua intrusion thiab oxidation thiab nitridation, ho txhim kho qhov zoo thiab ceev ntawm weld. Nws kuj stabilizes lub arc, txo spatter, thiab txhim kho cov tsos ntawm weld.
5.Lub vuam teeb: Nws lub luag haujlwm tseem ceeb yog ua kom tsis tu ncua thiab ruaj khov coj cov vuam hlau los ntawm cov xaim pub tshuab mus rau qhov chaw vuam, ua rau cov vuam siab tam sim no mus rau cov hlua hlau thaum lub sijhawm txheej txheem no. Qhov kawg ntawm cov phom vuam tseem yog lub luag haujlwm rau kev xa cov flux, sib npaug ntawm cov arc nyob rau hauv pem hauv ntej ntawm nws, yog li tsim ib txheej tiv thaiv thaum vuam, ua kom ruaj khov arc combustion thiab ua tau zoo -welds zoo.
IV.Vedo rau koj siv
Hydraulic lub tog raj kheej SAW vuam tshuab
Cua tank SAW vuam tshuab
