Dej rhaub Tank Middle Pipe Vuam Tshuab

1. Vuam teeb yog tsau thaum workpiece rotating. Vuam txoj hauj lwm yog kab rov tav. Lub workpiece yog clamped nruj nreem los ntawm jig ntawm ob kawg thiab rotates.
2. Torch, teb axis lub thawv thiab tailstock tuaj yeem hloov kho longitudinally kom haum rau ntau hom vuam.
3. Nyiv Omron PLC tau txais kev pom zoo los tswj lub tshuab kom khiav thiab ceev yog hloov kho los ntawm AC servo, uas tuaj yeem txhim kho kev ntseeg tau ntawm cov khoom siv.
4. Adopts kawg lub ntsej muag positioning thiab pneumatically clamping hom.
5. Txais tib neeg- tshuab interface los hloov cov tsis. Lub sijhawm vuam thiab qhov ntev vuam tuaj yeem teem caij ntawm qhov kev sib tshuam no. Kev hloov pauv ntawm qhov tsis tuaj yeem nkag los ntawm lub khawm kov yooj yim thiab raws sijhawm. Parameters tuaj yeem khaws thiab hu.

Lub tshuab no yog tsim los ntawm mainframe, spindle box thiab nws pneumatic feeding mechanism, tailstock thiab nws pneumatic feeding mechanism, workpiece txhawb mechanism, vuam torch noj thiab kho mechanism, hluav taws xob tswj system, pneumatic system thiab vuam fais fab qhov chaw.

1. TailstockCteebMechanism

Lub pneumatic tailstock tuaj yeem hloov kho raws li cov lus qhia rails kom tau raws li qhov yuav tsum tau muaj ntawm ntau hom vuam. Nws siv tes- ua haujlwm ntsia hlau pas nrig los kho. Lub workpiece yog clamped pneumatically thiab rotates. Qhov txuas ntxiv ntawm tailstock nruab nrog pneumatic fixture. Lub fixture clamps ob kawg ntawm workpiece nruj nreem kom ntseeg tau lub uniformity ntawm txhua clamping.

2.Workpiece Txhawb Mechanism

Sab laug thiab sab xis ntawm lub tshuab tau teeb tsa V-zoo li tus brackets los txhawb lub workpiece. Lub V-zoo li tus brackets txav nce thiab nqis pneumatically, txav mus rau thaum clamping thiab txav mus los thaum vuam

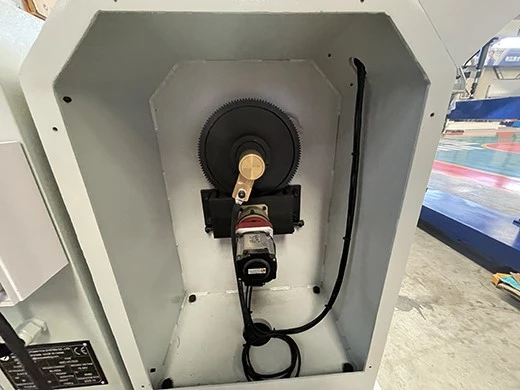

3.Workpiece rotary ntaus ntawv txais servo lub cev muaj zog. Txhawm rau hloov lub rotating ceev ntawm lub cev muaj zog los ntawm kev kho cov zaus. Kev sib hloov ceev tuaj yeem hloov kho tsis tu ncua thiab tuaj yeem ua cov digital tso tawm hauv cm / min nrog qhov ua txhaum qis, uas tsim nyog rau kev siv sijhawm ntev -.

4.Lub oscillating mechanism thiab cua lub tog raj kheej hloov.

Lub oscillating mechanism yog lub luag hauj lwm rau kev tsav lub vuam phom nozzle los yog tungsten electrode nyob rau hauv meej lateral reciprocating motion thaum lub vuam txheej txheem. Qhov no oscillating tsab ntawv tsa suab zoo widens lub weld pas dej ua ke, ua kom sov tis ntau txawm, yog li xyuas kom meej uniform weld hlaws dav. Lub tog raj kheej feem ntau ua rau kev hloov kho ntxhib thiab qhov chaw ntawm rab phom vuam. Tshwj xeeb tshaj yog ua ntej vuam pib, nws muaj peev xwm sai thiab ruaj khov thawb tag nrho vuam phom sib dhos rau lub preset vuam pib txoj hauj lwm. Tom qab vuam tiav lawm, lub tog raj kheej thim rov qab vuam phom, ua kom yooj yim rau kev thauj khoom thiab thauj khoom, ua kom zoo dua qub thiab kev nyab xeeb ntawm kev tsim khoom.

5.PLC tswj qhov system thiab HMI.

Nyiv ua PLC yog siv los ua lub hauv paus los tswj cov kev pabcuam clamping thiab vuam. Lub kaw lus muaj kev ruaj ntseg zoo thiab cov qauv yooj yim, uas yooj yim rau kev tswj xyuas.Adopts tib neeg - tshuab interface los hloov cov tsis. Lub sijhawm vuam thiab qhov ntev vuam tuaj yeem teem caij ntawm qhov kev sib tshuam no. Kev hloov pauv ntawm qhov tsis tuaj yeem nkag los ntawm lub khawm kov yooj yim thiab raws sijhawm. Parameters tuaj yeem khaws thiab hu.
