Tsis Siv Neeg Linear Seam Vuam Tshuab Rau Stainless Hlau Lub tog raj kheej
Cov khoom siv no yog lub tshuab vuam siv lub tshuab tshwj xeeb tsim los rau vuam ncaj seams. Nws yog dav siv rau welding longitudinal seams ntawm workpieces xws li hlau phaj, kav, thiab ntim. Nws cov yam ntxwv tseem ceeb yog kev ua haujlwm siab, siab precision, thiab ruaj khov weld zoo, ua rau nws tsim nyog rau ntau lawm.
Hauj lwm lawm
Tsis Siv Neeg Linear Seam Vuam Tshuab rau Stainless Hlau Lub tog raj kheej
I. Daim ntawv thov
- Lub welder tuaj yeem vuam ntau yam khoom siv ua haujlwm, xws li steel, carbon steel, stainless hlau thiab lwm yam.
- Vuam ncaj seam ntawm lub tog raj kheej
-
Lub tshuab tuaj yeem ua haujlwm tsis tu ncua rau 24-teev.
II.Technical parameter
|
Siv tau txoj kab uas hla |
200mm-800mm |
|
Siv tau ntev |
800mm-1500mm |
|
Khoom thickness |
1mm-3 hli |
|
Tswj qhov system |
Nyiv Omron PLC thiab kov npo |
|
Vuam ceev |
700mm / min |
|
Vuam teeb txav mus rau sab laug- txoj cai |
100 hli |
|
Vuam phom lifting ntau |
100 hli |
|
Vuam lub zog |
Panasonic YC-400 TX |
|
Tshuab ua hauj lwm voltage |
380v 3 theem 50hz |
PS: Cov khoom siv tuaj yeem hloov kho raws li qhov sib txawv workpiece specifications., thiab vuam fais fab qhov chaw yog xaiv tau.
III.Qhov zoo
Tsis Siv Neeg Linear Seam Vuam Tshuab rau Stainless Hlau Lub tog raj kheej:
IV. Tshuab qauv

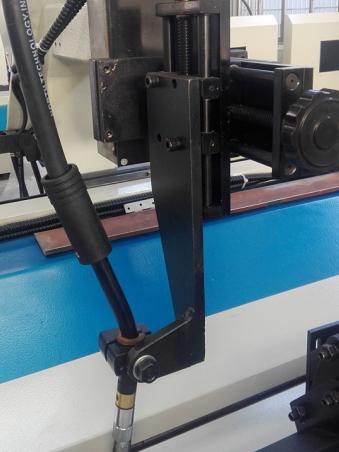

- Vuam teeb
Lub tshuab pub hlau tsis tu ncua pub cov vuam hlau thaum tib lub sijhawm txhaj tshuaj tiv thaiv roj.
Tsim nyog rau siab - vuam ceev ntawm nruab nrab- cov phaj tuab, xws li carbon hlau thiab stainless hlau.
-
Tsav ntaus ntawv
Cov cuab yeej tsav tsheb suav nrog servo lub cev muaj zog, ncaj khib & pinion thiab txoj kev qhia tawm.
-
Pneumatic lub tog raj kheej
Lub tog raj kheej yog ib qho tseem ceeb pneumatic actuator nyob rau hauv ib tug ncaj seam welder. Nws yog tsuas yog siv los tsav lub clamp, clamping mechanism, vuam phom nqa thiab lwm yam ua rau
xyuas kom meej qhov chaw thiab ruaj khov clamping ntawm lub workpiece thaum lub sij hawm vuam txheej txheem. Nws lub luag haujlwm tseem ceeb yog los muab kev ruaj khov thiab kho tau txhua yam siab
los yog hloov chaw, uas cuam tshuam ncaj qha rau cov vuam zoo thiab kev ua haujlwm zoo.
- Hlau feeder
Cov hlau feeder tsis tu ncua pub cov vuam hlau los ntawm cov hlau reel mus rau hauv lub vuam phom / vuam taub hau, melting nws synchronously nrog lub arc los tsim ib tug welding.
Uniform hlau pub tuaj yeem tswj tau qhov ntev arc ruaj khov thiab txo qhov tsis xws luag xws li spatter thiab porosity.

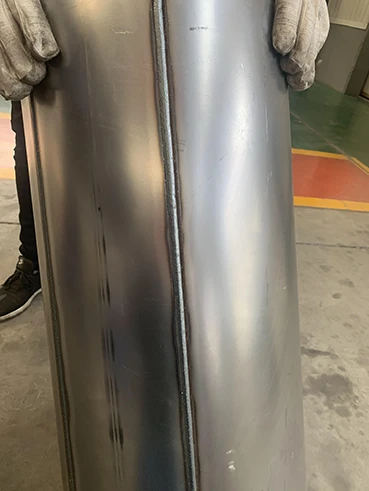

- Cov duab zoo nkauj
V.Vedo rau koj siv
Tsis Siv Neeg Linear Seam Vuam Tshuab rau Stainless Hlau Lub tog raj kheej:
