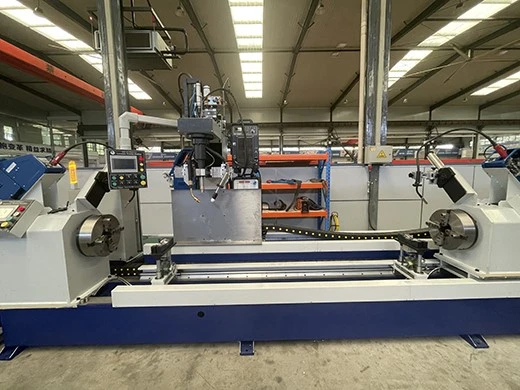

Yeeb Nkab Flange Tsis Siv Neeg Txiav Thiab Vuam Tshuab

Cov Yeeb Nkab Flange Tsis Siv Neeg Txiav thiab Vuam Kev Sib Koom Ua Haujlwm yog qhov siab -kawg tsim khoom ntse uas sib koom ua ke siab - txiav txiav, ntau yam vuam, thiab kev tswj tsis siv neeg. Tsim tshwj xeeb rau kev tsim cov raj xa dej, nws hloov pauv kev sib koom ua ke ntawm ntau yam txheej txheem, suav nrog kev sib txuas ntawm cov kav dej thiab flanges, yeeb nkab lub cev drilling, thiab ceg (qhov hluav taws xob) vuam, tag nrho hauv ib qho chaw ua haujlwm. Cov cuab yeej no tsis tsuas yog txhim kho kev tsim khoom thiab cov khoom zoo, tab sis nws cov qauv siv tau yooj yim kuj ua rau nws zoo tagnrho rau ntau yam kev siv, suav nrog cov kav dej ua liaj ua teb thiab cov kav dej.

1. Tsis siv neeg vuam ntawm cov yeeb nkab steel thiab flanges
Txheej txheem piav qhia: Lub chaw ua haujlwm tau ua tiav qib siab - zoo ncig ntawm cov yeeb nkab steel kawg thiab flanges.
Technical nta:
Tsis Siv Neeg Centering thiab Clamping: Lub chuck precision ua kom muaj kev sib koom ua ke ntawm cov yeeb nkab thiab flange, tshem tawm cov kev sib dhos yuam kev.
Welding Power Supply: Nruab nrog lub siab -kev ua tau zoo digital vuam fais fab mov, nws tuaj yeem xaiv cov txheej txheem vuam zoo rau cov khoom siv sib txawv, xws li carbon steel thiab stainless hlau.
Automated Vuam: Cov phom vuam yog tswj tau los ntawm servo lub cev muaj zog-tsav hla swb lossis caj npab neeg hlau, ua tiav 360℃sib hloov. Vuam tsis tau (tam sim no, voltage, ceev, thiab oscillation) yog preset thiab tswj nyob rau hauv lub sij hawm ntawm lub PLC, kom ntseeg tau ib tug zoo nkauj weld, uniform nkag mus rau hauv, thiab tsis xws luag - welds dawb.

2.Steel yeeb nkab txiav thiab qhov drilling
Cov txheej txheem piav qhia: Precisely txiav ntawm qhov chaw xaiv ntawm cov kav hlau, tsim ntau lub qhov rau cov ceg yeeb nkab txuas.
Technical nta:
High -Precision Cutting: Siv plasma lossis laser txiav tshuab. Plasma txiav yog tus nqi - zoo thiab ceev, haum rau nruab nrab - thiab tuab - cov kav hlau kav.
CNC Positioning: Lub taub hau txiav yog tswj hwm los ntawm CNC system, tso cai rau nws txiav ntawm txhua qhov axial lossis radial txoj hauj lwm hauv cov yeeb nkab raws li qhov kev pab cuam input.
Groove Cutting Capability: Ua tiav txiav vuam grooves hauv ib qho kev ua haujlwm, npaj rau cov ceg txuas txuas txuas txuas ntxiv thiab tshem tawm cov txheej txheem thib ob.

3. Tsis siv neeg vuam ntawm cov qhov hluav taws xob (Cov kav dej)
Txheej txheem piav qhia: Tsis siv neeg welds ua ntej- npaj cov dej tawm (cov yeeb nkab txuas) ua ntej-drilled qhov.
Technical nta:
Cov cuab yeej tshwj xeeb: Nruab nrog qhov sib hloov tau sai sai ntawm cov yeeb nkab vuam fixture, nws ruaj khov tuav cov qhov hluav taws xob sib txawv thiab ua kom haum rau lawv nrog cov yeeb nkab loj.
Complex Trajectory Vuam: Lub vuam actuator ua cov kev sib tw spatial nkhaus, ua tiav eeb- zoo li txoj kab sib tshuam welds ntawm lub ntsiab thiab ceg kav, uas ua rau tag nrho cov welds thiab zoo heev sealing.

• Kev sib koom ua ke zoo heev, qhov chaw- thiab tus nqi-txuag: Kev sib xyaw ua haujlwm ntawm ntau yam khoom siv, suav nrog kev txiav, vuam, thiab drilling, lub tshuab txo qis hneev taw, lub sijhawm ua haujlwm hloov pauv, thiab nqi zog.
• Kev ua haujlwm siab automated: Los ntawm qhov chaw thiab clamping rau txiav thiab vuam, tag nrho cov txheej txheem yog automated. Cov neeg ua haujlwm tsuas yog xav tau kev pab cuam, thauj khoom thiab tshem tawm, thiab saib xyuas, txo qis kev siv zog ua haujlwm.
• Zoo heev precision thiab sib xws: CNC system thiab servo tsav kom meej meej thiab meej txav, tshem tawm tag nrho cov instability ntawm phau ntawv ua hauj lwm thiab guaranteeing zoo ib yam rau txhua yam khoom.
• Tus neeg siv- tus phooj ywg interface: Nruab nrog lub vijtsam kov, kev tswj hwm software ua ke ua rau kev ua haujlwm, qhov ntsuas qhov ntsuas, thiab cov cuab yeej saib xyuas yooj yim thiab nkag siab.

1.This integrated workstation yog ib tug multifunctional tsis siv neeg txiav thiab vuam khoom rau steel yeeb flanges. Nws koom ua ke ob txoj haujlwm tseem ceeb: ntawm ib sab, nws tuaj yeem ua tiav qhov kev sib txuas ntawm cov kav hlau steel thiab flanges kom muaj zog thiab sib khi ntawm kev sib txuas; ntawm qhov tod tes, nws tseem tuaj yeem ua tau raug txiav ntawm phab ntsa ntawm cov yeeb nkab steel, xws li qhib lub qhov dej thiab tom qab ntawd vuam qhov hluav taws xob tiv thaiv rau lub cev yeeb nkab. Cov cuab yeej tau nruab nrog ob lub vaj huam sib luag tswj hwm kom ua tiav kev faib ua haujlwm thiab kev ua kom zoo dua qub - ib lub vaj huam sib luag tshwj xeeb yog siv los tswj tag nrho cov txheej txheem vuam ntawm cov kav hlau thiab flanges, thaum lwm lub vaj huam sib luag tau mob siab rau tswj kev txiav cov qhov hauv cov yeeb nkab steel thiab tom qab vuam ntawm cov kav dej. Qhov kev tsim vaj huam sib luag ob npaug no tso cai rau ob qho kev sib txuas ua haujlwm ua haujlwm ua ke lossis ntawm nws tus kheej, txhim kho ntau yam - ua haujlwm muaj peev xwm thiab kev ua haujlwm tag nrho ntawm cov khoom siv.

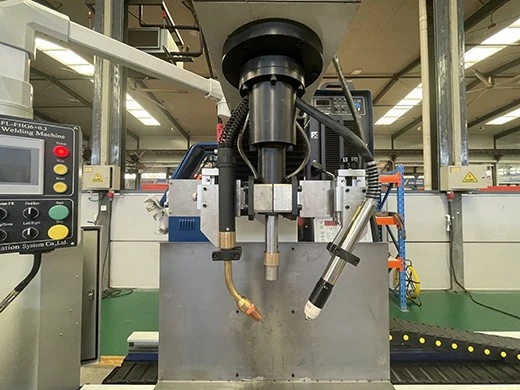

2.Cov thawj coj tseem ceeb ntawm cov cuab yeej siv no muaj xws li lub tshuab hluav taws xob plasma, lub tshuab hluav taws xob tiv thaiv hluav taws xob, thiab cov cuab yeej tshwj xeeb. Lub plasma txiav taws yog lub luag haujlwm kom raug thiab ua tau zoo txiav qhov xav tau qhov hluav taws xob rau hauv cov yeeb nkab steel phab ntsa. Nws qhov siab - qhov kub thiab txias plasma arc tuaj yeem yaj cov hlau tam sim ntawd, ua kom lub ntsej muag du thiab tiaj tiaj, nteg lub hauv paus rau vuam tom ntej. Cov roj hluav taws xob tiv thaiv hluav taws xob ua raws li nyob ze tom qab, siv cov roj inert los tiv thaiv lub arc thiab khov kho cov hlau vuam hlau mus rau qhov hluav taws xob txiav flange ntug, ua kom tuab, siab - lub zog, thiab zoo heev kaw weld. Cov cuab yeej tshwj xeeb yog lub hauv paus ntawm tag nrho cov txheej txheem. Nws yog lub luag hauj lwm rau stably clamping thiab rotating cov yeeb nkab sib koom ua ke thiab precisely tswj cov txheeb ze txoj hauj lwm ntawm lub txiav torch thiab vuam torch kom meej txiav thiab vuam trajectories, yog li ua tau zoo sib xws thiab zoo nyob rau hauv loj ntau lawm. Peb ua hauj lwm ua ke ua kom tiav cov txheej txheem automated los ntawm kev txiav thiab qhib rau vuam thiab sib sau.

3.Qhov precision spindle system muab lub zog hloov pauv ruaj khov, ua kom muaj kev ua haujlwm du thiab meej. Lub pneumatic teb chuck ruaj ntseg tuav lub flange thiab cov yeeb nkab yuav tsum tau welded, rotating synchronously nrog spindle los muab lub hauv paus zoo ib yam rau siab -precision bevel txiav thiab tom qab vuam. Txhawm rau txhawb nqa cov kav hlau ntev ntev thiab ua rau lawv qhov hnyav -vim droop, cov cuab yeej tau nruab nrog lub rack hloov tau yooj yim. Nws qhov siab thiab qhov sib txawv tuaj yeem hloov kho raws li cov yeeb nkab specifications. Ua ke nrog cov spindle thiab chuck, nws tsim ib qho kev ruaj khov thiab nruj, kom ntseeg tau qhov ncaj thiab concentricity ntawm flange kev twb kev txuas hla tag nrho cov yeeb nkab. Qhov no yog qhov tseem ceeb rau kev ua tiav kev txiav txiav thiab siab - vuam zoo



Tube flange tsis siv neeg txiav thiab vuam tshuab:
