5-Axis CNC-Controlled Hydraulic Lub tog raj kheej Vuam System

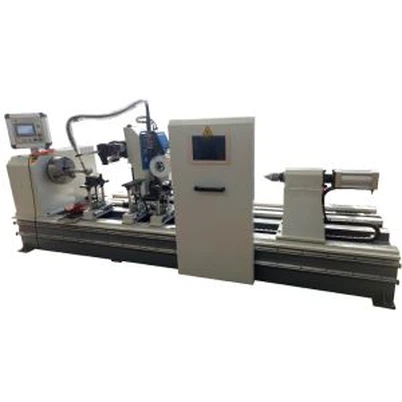

5-axis CNC system yog saws, uas tswj 5-dimension txiav txim ntawm rotating, vuam torch nce thiab nqis, pem hauv ntej thiab rov qab, sab laug thiab sab xis, los ntawm lub kaum sab xis. Lub spindle revolving ceev hloov nrog rau lub workpiece rotating txoj hauj lwm, kom thewelding kab ceev uniform.
Hauj lwm lawm
Cov yam ntxwv tseem ceeb
- MAG cua-txias vuam teeb yog tsau thaum lub tshuab ua haujlwm tig, vuam txoj haujlwm yog kab rov tav.
- Txais welded tshuab lub cev, vuam teeb thiab pneumatic tus Tsov tus tw - Tshuag tuaj yeem kho longitudinally, nws tuaj yeem kaw tom qab hloov kho.
- Workpiece yog positioned los ntawm tshwj xeeb fixture thiab nias los ntawm pneumatic thimble. Rotating synchronously. Chaw thau khoom thiab tshem tawm bracket yog mounted nyob rau hauv lub workpiece.
- Nyiv OMRON PLC tswj tag nrho lub tshuab ua haujlwm. Workpiece rotation ceev yog kho los ntawm inverter, stepless hloov, los txhim kho kev ntseeg tau.
- Nyiv OTC vuam fais fab qhov chaw uas muaj kev ua tau zoo ntawm arc igniting, arc stabilizing thiab arc xaus, kom ntseeg tau tias vuam seam yog txawm thiab uniform.
- Vuam tam sim no thiab vuam voltage yogtswj los ntawm D / A (digital analog). Lawv tuaj yeem raug preset thiab rov qab rau hauv txheej. Kom paub ntau txheej nruam vuam thaum lub arc tsis nres.
- Nrog cov tsos zoo thiab zoo zoo, qhov tob thiab dav ntawm fusion ua tau raws li qhov yuav tsum tau ua.
- Lub tshuab muaj kev ua haujlwm zoo thiab tsis ua haujlwm tsawg.
Vuam oscillating mechanism yog siv los vuam dav thiab ntau txheej seams ntawm hydraulic lub tog raj kheej.
Cov txheej txheem Parameters
|
Rotary axis rotation ceev |
0.2-10R / MIN stepless hloov |
|
Vuam tam sim no |
50-500A, 100% lub luag haujlwm voj voog |
|
Vuam Torch Kho |
lifting nrug: 100mm |
|
sab laug- sab xis: 100mm |
|
|
tilting lub kaum sab xis: 25℃- 60 degree |
|
|
Cua compressor |
0.4-0.6MPA |
|
Ua haujlwm voltage |
3 theem 380V 50hz |
|
Welding torch oscillating Scope adjustment |
0-40 hli |
|
Vuam Torch oscillating zaus ntau |
0-30 zaug / min |
|
Vuam Torch sawv sijhawm ntawm ob sab |
0-10 vib nas this |
|
Vuam teeb sawv lub sijhawm nyob nruab nrab |
0-10 vib nas this |
|
Vuam torch pneumatic pub nqi |
200 hli |
|
Tail Tshuag welding torch pneumatic pub nqi |
150 hli |
Ua haujlwmprocess
Manual loading → clamp workpiece → pneumatically nias workpiece → pneumatically pub lub vuam torch mus rau vuam txoj hauj lwm → muab CO2 roj → arc igniting → vuam → ncav cuag lub teeb vuam ntev,
welding torch oscillates thiab welds multi- txheej, kom txog thaum vuam → arc xaus → nres CO2 roj → vuam teeb rov qab sai sai rau hauv keeb kwm → tso tawm workpiece → phau ntawv unloading
