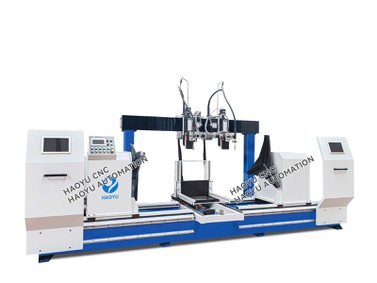

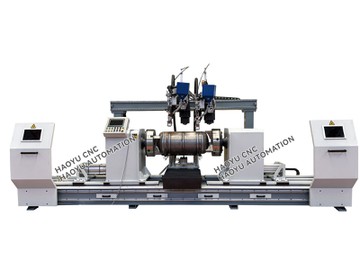

Tsis Siv Neeg Circumferential Thiab Ncaj Seam Integrated Vuam Tshuab

• Ntau- ua haujlwm tau zoo thiab muaj ntau yam: Qhov no yog qhov zoo tshaj plaws. Ib lub tshuab ua tau raws li qhov xav tau ntawm ob lub ntsiab vuam hom, txuag ntawm cov khoom siv khoom siv thiab chaw tsim khoom.
• High automation thiab high efficiency: Cov txheej txheem automated tag nrho txo ​​qhov kev cia siab ntawm kev siv vuam kev txawj ntse, ua kom ruaj khov vuam ceev thiab kev ua haujlwm siab, ua rau nws tsim nyog rau ntau lawm.
• Kev ruaj khov thiab txhim khu kev qha vuam zoo: Cov txheej txheem automated tshem tawm tib neeg kev ua yuam kev, ua rau muaj kev zoo nkauj, zoo ib yam weld formations nrog tus nqi qis.
• Kev ua haujlwm yooj yim thiab kev ua haujlwm yooj yim: Cov txheej txheem tswj niaj hnub no muaj tus neeg siv -tus phooj ywg interface, yooj yim parameter nqis, thiab tuaj yeem khaws ntau qhov kev siv vuam kom rov qab tau yooj yim.
• Kev hloov pauv siab: Los ntawm kev kho cov khoom siv thiab cov kev pab cuam, nws tuaj yeem hloov kho rau cov khoom sib txawv ntawm qhov sib txawv, qhov ntev, thiab thicknesses, muab ntau yam kev siv.

1.Main Tshuab Lub Cev Lub Cev thiab Lub Cev: Lub tshuab ua haujlwm ruaj khov muab lub hauv paus ruaj khov rau tag nrho cov kab ke.

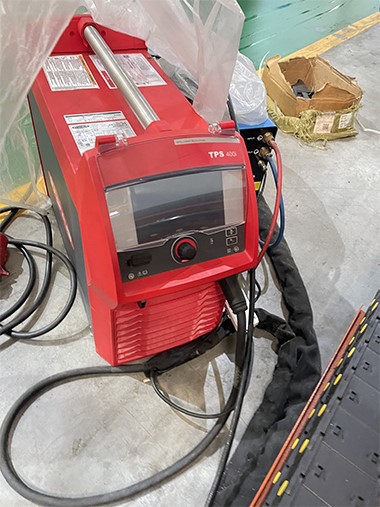

2.Welding Power Source: Muab lub zog xav tau rau vuam, xws li TIG vuam, MIG / MAG vuam, plasma vuam, lossis laser vuam, xaiv raws li cov txheej txheem.

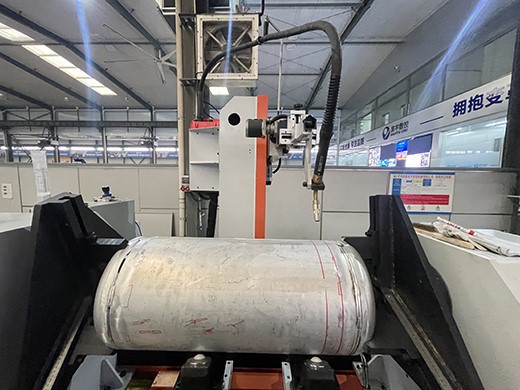

3. Circumferential Seam Vuam Chaw Nres Nkoj:

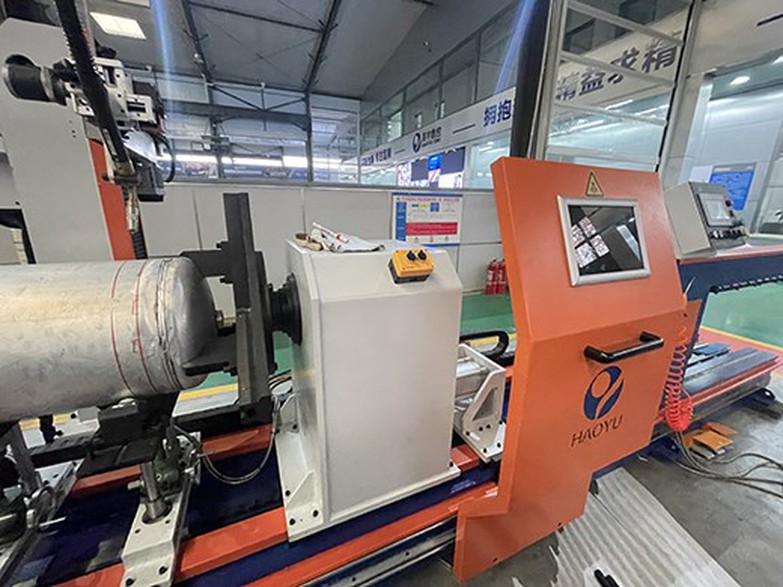

• Lub chuck yog feem ntau mounted ntawm ib kawg ntawm spindle, thiab ib tug servo lub cev muaj zog yog ntsia rau hauv lub spindle box. Nws lub luag haujlwm tseem ceeb yog tsav lub chuck kom nrawm nrawm thiab tig lub workpiece. Ntawm qhov tod tes, lub tog raj kheej tuav lub workpiece nyob rau hauv qhov chaw kom ntseeg tau tias vuam txoj hauj lwm yog kab rov tav thiab lav zoo zoo vuam zoo.

• Sab laug- txoj cai viav vias ntawm lub vuam teeb tuaj yeem nthuav dav qhov vuam seam, ua kom cov cua sov faib ua kom zoo dua qub thiab ua kom tsis txhob muaj qhov tsis xws ntawm vuam xws li undercut thiab tsis muaj fusion.

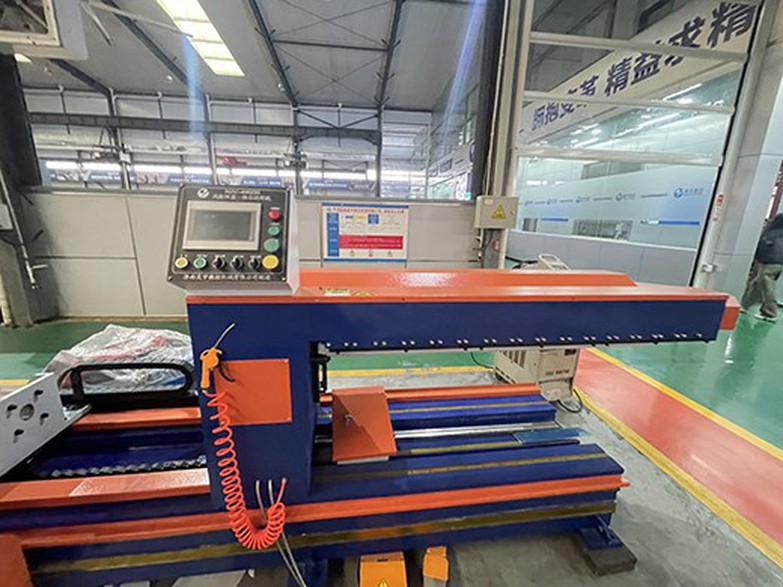

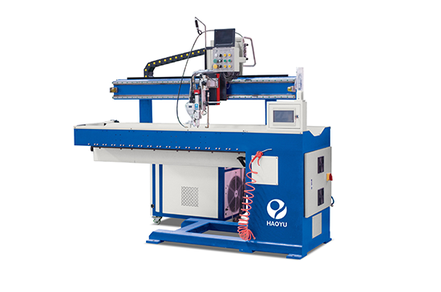

4.Straight Seam Vuam Chaw Nres Nkoj:

Lub worktable ntawm lub ncaj seam welding tshuab yog tsau, thaum welding torch tuaj yeem txav mus rau ntawm cov kev taw qhia rail los ua welding ntawm circumferential thiab ncaj seams.

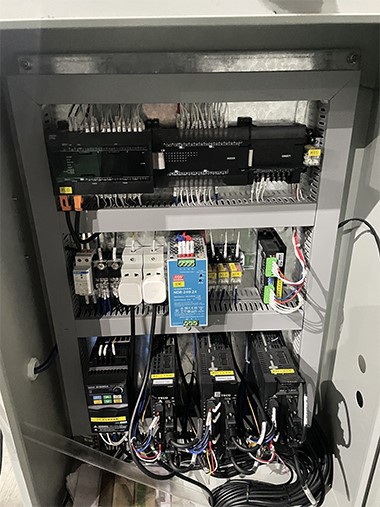

5.Qhov kev tswj hwm tseem ceeb ntawm qhov kev sib koom ua ke ntawm lub voj voog thiab ncaj seam vuam tshuab muaj xws li programmable logic controller (PLC) thiab nws cov expansion modules. Lub PLC ua raws li lub hlwb ntawm tag nrho cov txheej txheem vuam, lub luag haujlwm rau kev sib koom ua ke ntawm kev sib hloov ntawm vuam teeb, kev txav ntawm cov khoom ua haujlwm, thiab kev ua tiav ntawm vuam tsis. Txhawm rau ua kom tau raws li qhov xav tau ntawm ob qho tib si circumferential thiab ncaj seam vuam txheej txheem, lub kaw lus ntxiv cov ntsiab lus nkag / tawm thiab cov haujlwm tshwj xeeb cuam tshuam los ntawm kev nthuav dav modules, ua kom muaj kev sib txuas thiab kev tswj hwm ntawm ntau lub sensors, actuators, thiab peripheral li.

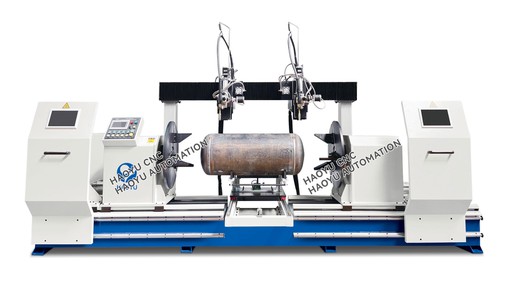

• Hom 1: Circumferential Seam Vuam hom

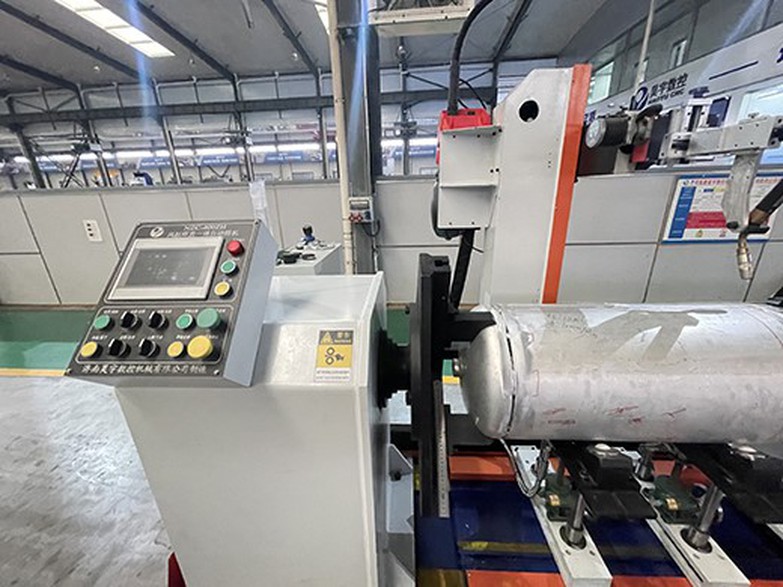

Clamping: Clamp lub cylindrical workpiece ntawm headstock thiab tailstock.

Torch Alignment: Kho qhov vuam teeb txoj hauj lwm kom haum rau qhov chaw pib vuam.

Vuam: Pib qhov kev pab cuam; lub taub hau tig lub workpiece ntawm qhov ceev tsis tu ncua, thaum lub vuam teeb pib thiab ua rau me me oscillations. Tag nrho cov voj voog ncig yog welded tom qab ib qho kev sib hloov ua tiav ntawm lub workpiece.

• Hom 2: Ncaj Seam Vuam Hom

Clamping: Muab cov khoom ua haujlwm rau welded (paj phaj los yog sib cais-slit lub tog raj kheej) rau hauv qhov ncaj seam fixture, thiab siv cov yawm sij los yog cov phaj siab los tuav ob sab ntawm cov vuam.

Torch Alignment: Kho lub vuam teeb rau qhov pib kawg ntawm txoj kab ncaj nraim.
