SAW Tank Circular Seam Tsis Siv Neeg Vuam Khoom
1.Weld ib ncig seam ntawm lub tog raj kheej roj. Melting thickness thiab dav ncav cuag kev ua haujlwm. Nrog zoo li qub thiab du vuam zoo li.2.Load thiab unload lub tog raj kheej yooj yim . 3.Submerged Arc Vuam hom.4.Machine tuaj yeem ua haujlwm tsis tu ncua rau 24-teev.
Hauj lwm lawm
SAW tank ncig seam tsis siv neeg vuam khoom
I.Technical parameter
|
Lub tog raj kheej txoj kab uas hla |
200-750 hli |
|
Lub tog raj kheej ntev |
200-500 hli |
|
Kev sib hloov ceev |
0.2-2 rpm |
|
Lub cev muaj zog |
0.75 kwm |
|
Cua siab |
0.4-0.6 Mpa |
|
Vuam teeb txav mus rau sab laug- txoj cai |
50 hli |
|
Weld torch lifting range |
50 hli |
|
Txoj kab uas hla ntawm cov khoom hlau |
1.6mm-3.2 hli |
|
Tshuab ua hauj lwm voltage |
380v 3 theem 50hz |
II.Tshuab Qauv
1. Vuam teeb tuaj yeem hloov kho nce thiab nqis, sab rau sab thiab tig tig. Thaum lub tshuab ua haujlwm, lub tog raj kheej yuav tig. Lub tshuab yog nruab nrog 2pc SAW vuam teeb.
2. Nyiv OMRON PLC thiab kov npo yog siv los tswj tag nrho lub tshuab. Nrog kev pab los ntawm tus txiv neej kov- tshuab interface, vuam hom thiab specification tuaj yeem raug preset, khaws cia thiab khaws cia. Yuav muaj teeb meem txhaum cai thiab qhia thaum lub sij hawm vuam, xws li daig hlau, thaiv hlau, thiab lwm yam.

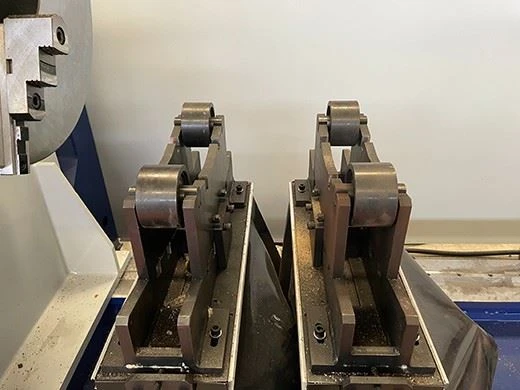

3.Lub tog raj kheej yog kho los ntawm cov chuck rotary, thiab kev txhawb nqa los ntawm kev sib tw ntawm cov dov lub tog raj kheej.Rolling lub log kom ntseeg tau tias nws hloov tau yooj yim thiab yooj yim rau kev thauj khoom thiab tshem tawm lub tog raj kheej. Qhov deb ntawm cov brackets tuaj yeem hloov kho raws li lub tog raj kheej ntev.
4.Qhov no dual- phom submerged arc vuam tshuab yog nruab nrog lub siab -precision spindle tsav system thiab txav tau yooj yim clamping mechanism. Lub thawv spindle integrates lub servo lub cev muaj zog, uas tuaj yeem tsav lub chuck kom tig lub workpiece smoothly. Nyob rau tib lub sij hawm, ib tug ejector tus pin yog ntsia rau ntawm lub tailstock mus txawv tebchaws nyob rau sab nraud. Nws tuaj yeem txav tau yooj yim thiab ua haujlwm ua ke nrog lub chuck kom khov kho lub workpiece los ntawm ob sab, yog li xyuas kom meej tias cov vuam yog ib txwm khaws cia nyob rau hauv txoj hauj lwm kab rov tav zoo tagnrho thaum lub sij hawm vuam txheej txheem, muab kev ruaj ntseg lav rau siab - zoo thiab siab - ua tau zoo circumferential vuam.
5.Lub movable tailstock lub luag haujlwm tseem ceeb yog ua haujlwm nrog cov chuck los txhawb thiab clamp lub cylindrical workpiece yuav tsum tau welded, kom ntseeg tau ruaj khov thaum lub sij hawm tig. Cov tailstock no tuaj yeem hloov kho tau yooj yim thiab muab xauv rau ntawm txoj kab raws li qhov ntev ntawm lub workpiece, yog li yoog raws qhov kev xav tau ntawm cov cylindrical lossis cov yeeb nkab ncig ntawm qhov sib txawv ntawm qhov ntau thiab tsawg, nthuav dav cov cuab yeej ua haujlwm ntau thiab ua kom cov vuam raug.
III.Vídeo rau koj siv
Hydraulic lub tog raj kheej SAW vuam tshuab
