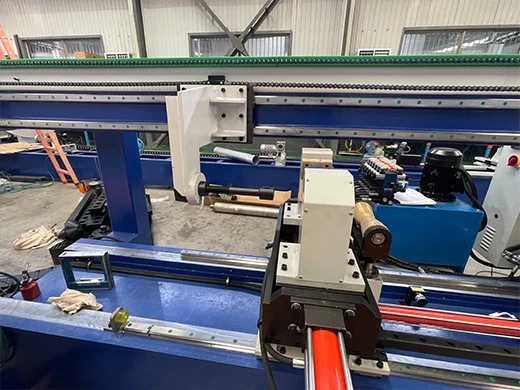

Tsis Siv Neeg Kab rov tav Lub tog raj kheej Disassembly thiab Assembly Machine





• Basic Form: Lub cev tseem ceeb ntawm cov cuab yeej yog feem ntau nteg tawm kab rov tav. Lub tog raj kheej lub tog raj kheej, piston pas nrig, lub tes tsho qhia, thiab lwm yam tseem ceeb ntawm lub tog raj kheej hydraulic yog sib sau ua ke kab rov tav, raws li qhov ua haujlwm ntawm lub tog raj kheej.
• Core Function: Los ntawm cov qauv siv tshuab, pneumatic, hydraulic, lossis servo fais fab lub tog raj kheej tsav, ua ke nrog cov sensors thiab PLC (Programmable Logic Controller) system, nws tau ua tiav cov haujlwm xws li kev tso tawm, nias, nruj, thiab tshuaj xyuas.
• Lub Hom Phiaj Tsim: txhawm rau daws cov teeb meem xws li kev siv zog ua haujlwm siab, kev ua haujlwm tsis zoo, tsis zoo sib xws (xws li, kev puas tsuaj yooj yim rau cov ntsaws ruaj ruaj thaum lub sijhawm teeb tsa, tsis sib xws lub zog nruj), thiab kev nyab xeeb kev nyab xeeb (hnyav- lub luag haujlwm hydraulic lub tog raj kheej tuav) cuam tshuam nrog kev sib dhos ntawm phau ntawv.





Sab nraud txoj kab uas hla ntawm lub tog raj kheej	Max 380 hli
Stroke (lub tog raj kheej luv luv kaw lub xeev loj)	550 hli
Lub tog raj kheej ntev tshaj plaws kaw lub xeev ntev	2500 hli
Qhov ntev lub tog raj kheej ncua lub xeev loj	5000 hli
Bolt torque yuav tsum tau rau bolt - hom thooj voos kheej kheej	3700 Nm, uas tuaj yeem teeb tsa.
Hwj chim	AC380V ± 10%, 50Hz
Cua siab	0.5 ~ 0.7MPa;





Ib qho kab rov tav hydraulic lub tog raj kheej disassembly thiab sib dhos tshuab feem ntau suav nrog cov tshuab hauv qab no:

• Ncej thiab txaj:

Cov qauv hlau muaj zog uas muab kev ruaj khov, qib siv rau tag nrho lub tshuab.





• Lub tog raj kheej thiab piston pas nrig positioning thiab clamping mechanism:

Siv los kho lub tog raj kheej lossis piston pas nrig, ua kom lub piston pas nrig thiab lub tog raj kheej nyob rau hauv txoj hauj lwm coaxial. Nws feem ntau suav nrog V-blocks lossis kev cai clamps, thiab lub tshuab clamping yog tsav los ntawm lub tog raj kheej hydraulic. Xwb, lub piston pas nrig clamping mechanism kuj tau tsav los ntawm lub tog raj kheej hydraulic kom txav raws cov kev taw qhia rail, txav tus pas nrig piston mus rau sab hauv ntawm lub tog raj kheej.

• Tightening mechanism:

Servo-driven wrench siv los txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhuam nws





• Cov xovxwm - haum mechanism

Nws siv hydraulic lub cev muaj zog los ua kom lub piston pas nrig. Raws li cov nqi tsim nyog, hydraulic lub cev muaj zog nce qib piston pas nrig mus rau qhov chaw ua ntej kom ua tiav lub rooj sib txoos.





Hydraulic lub tog raj kheej sib dhos tshuab







Nqe Lus Nug 1: Nws paub li cas yog tias cov threads hla threaded. Puas muaj ib txoj hauv kev los tiv thaiv kev sib tsoo?

Teb:Yog hais tias misalignment tshwm sim, lub torque yuav nce. Yog hais tias tus naj npawb ntawm kev sib hloov tsis txaus, lub tshuab yuav pom tias lub teeb torque tau dhau lawm, ces lub tshuab yuav nres, thiab muab lub tswb. tshuab ntes ob qho tib si torque thiab laps.



Nqe Lus Nug 2: Kuv xav tias peb yuav tsum tswj qhov kev sib hloov ceev kom nruj lub caj pas los ntawm kev mus qeeb ntawm qhov pib thiab tom qab ntawd ua kom nrawm dua thiab ua kom qeeb dua rau qhov kawg torque. Puas yog qhov ua tau?

Teb:Peb muaj qhov ua tau zoo - hauv kev nrawm nrawm hauv Txoj Haujlwm, tab sis cov neeg siv khoom tsis tuaj yeem kho nws; nyob rau hauv kev muaj tiag, nws accelerates los ntawm ib tug qeeb ceev. hais txog qhov qis dua ntawm ob peb lub laps kawg, qhov qis dua yog kho los ntawm Kev Pabcuam, Txhawm rau kom muaj lub zog sib xws thaum lub sijhawm ua haujlwm tiav, peb tsis tso cai rau cov neeg siv khoom los teeb tsa qhov qis dua no. Qhov sib txawv ceev ua rau sib txawv torque poob. tab sis tuaj yeem teeb tsa pes tsawg lub sijhawm kawg ua haujlwm qis dua.



Nqe Lus Nug 3: Yog tias xav tau kev hloov pauv hauv qhov program koj puas tuaj yeem nyob deb ntawm kev ua haujlwm ntawd?

Teb:Yog lawm, HMI muaj wifi muaj nuj nqi, peb tuaj yeem hloov PLC los ntawm peb qhov system.





1.Nquag peb yuav siv fumigation plywood rooj rau ntim; rau qee lub tshuab loj, peb tuaj yeem siv steel pallet thiab yas filme npog.Tag nrho cov cav tov yog pleev xim rau cov xim pleev xim los yog roj ua ntej tawm hauv lub Hoobkas.
2.Package tuaj yeem ua raws li cov neeg siv khoom xav tau
